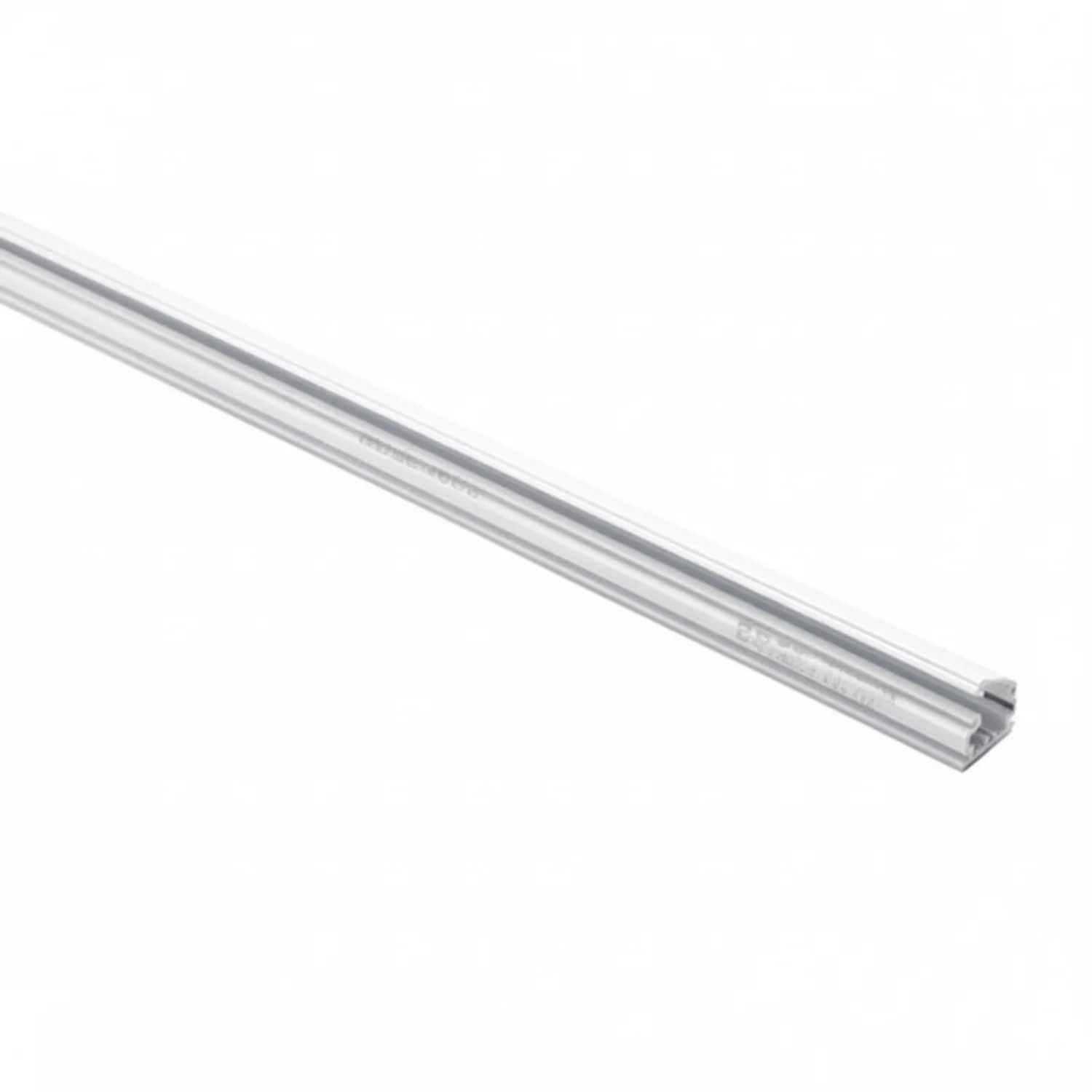

HellermannTyton TSRP1W-6A One Piece Power Rated Raceway, 3/4", 6.0 ft Long, PVC, White, 120ft/Carton
Length: 6ft
Width: 0.75"
Height: 0.50"
Color: White
Qty/Bag: 120ft
Material: Polyvinylchloride (PVC)
Material Shortcut: PVC
Flammability: UL 94 V0
Halogen free: No
Operating Temperature (Metric): +122°F (+50°C)
Reach Complaint(Article 33): No
ROHS Complaint: Yes
UL Listed (US and Canada): Yes
UL Listed (US): Yes
Features & Benefits
•Completely tamper resistant, the cover’s self-locking, hidden positive latch permits quick re-entry as well as providing a secure installation of power cables.
•U.L. Listed for power up to 600 Volts, meeting UL5A and CSA 22.2 Number 62-93 Standards.
•Manufactured from UL 94V-0 rated PVC material.
•Fittings incorporate a minimum 1" bend radius per TIA/EIA 568-B and 569-A standards.
•Large base for greater adhesive surface.
•Rubber-based foam tape adhesive with high ultimate bond strength, which conforms to any surface.
•Flexible hinge allows the raceway to endure numerous openings without creating discoloration or stress cracking.
•Junction boxes can be used for electrical or data outlets.
•Designed to complement HellermannTyton’s industry standard TSR low voltage raceway system.
Description
HellermannTyton TSRP1W-6A One Piece Power Rated Raceway, 3/4", 6.0 ft Long, PVC, White, 120ft/Carton
Length: 6ft
Width: 0.75"
Height: 0.50"
Color: White
Qty/Bag: 120ft
Material: Polyvinylchloride (PVC)
Material Shortcut: PVC
Flammability: UL 94 V0
Halogen free: No
Operating Temperature (Metric): +122°F (+50°C)
Reach Complaint(Article 33): No
ROHS Complaint: Yes
UL Listed (US and Canada): Yes
UL Listed (US): Yes
Features & Benefits
•Completely tamper resistant, the cover’s self-locking, hidden positive latch permits quick re-entry as well as providing a secure installation of power cables.
•U.L. Listed for power up to 600 Volts, meeting UL5A and CSA 22.2 Number 62-93 Standards.
•Manufactured from UL 94V-0 rated PVC material.
•Fittings incorporate a minimum 1" bend radius per TIA/EIA 568-B and 569-A standards.
•Large base for greater adhesive surface.
•Rubber-based foam tape adhesive with high ultimate bond strength, which conforms to any surface.
•Flexible hinge allows the raceway to endure numerous openings without creating discoloration or stress cracking.
•Junction boxes can be used for electrical or data outlets.
•Designed to complement HellermannTyton’s industry standard TSR low voltage raceway system.
