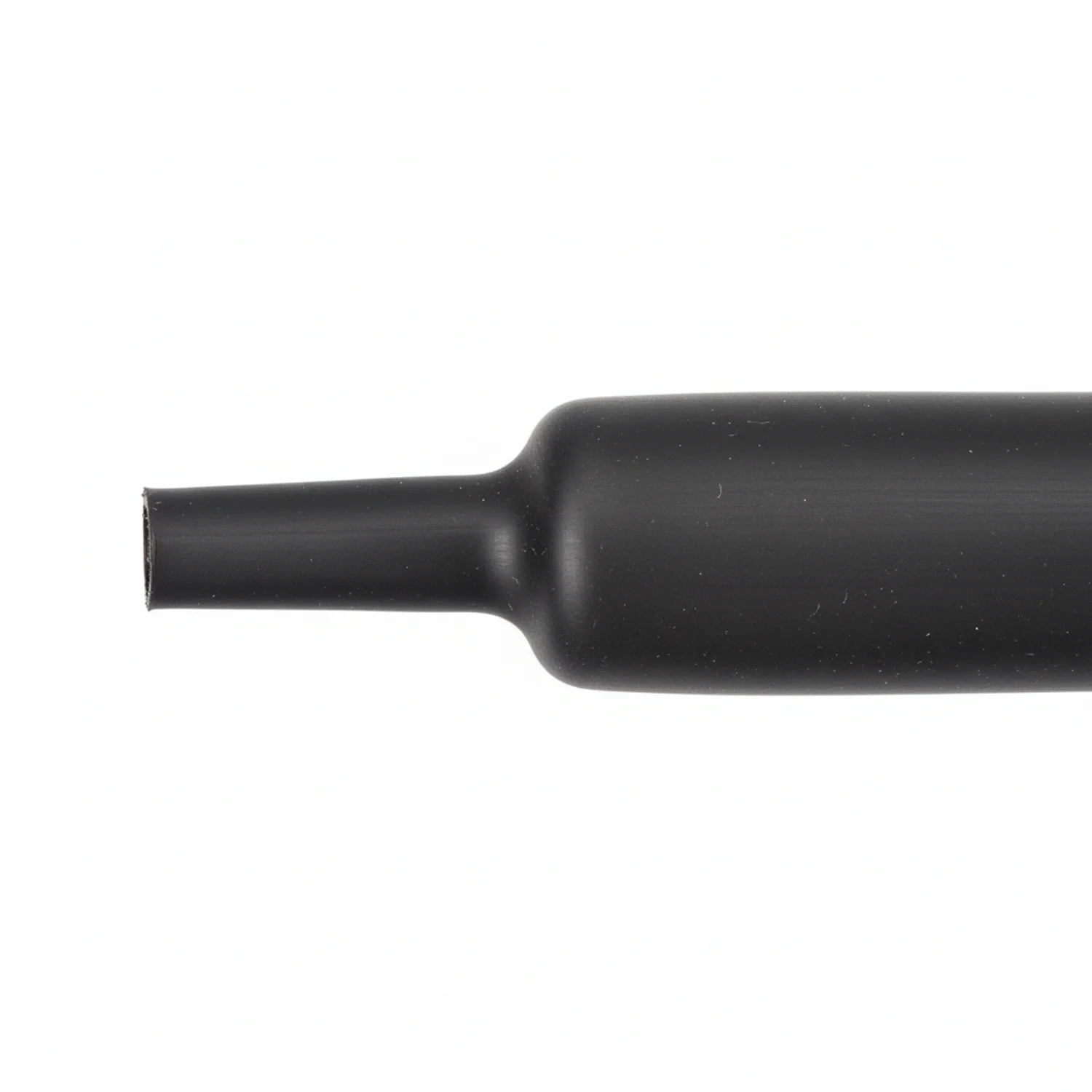

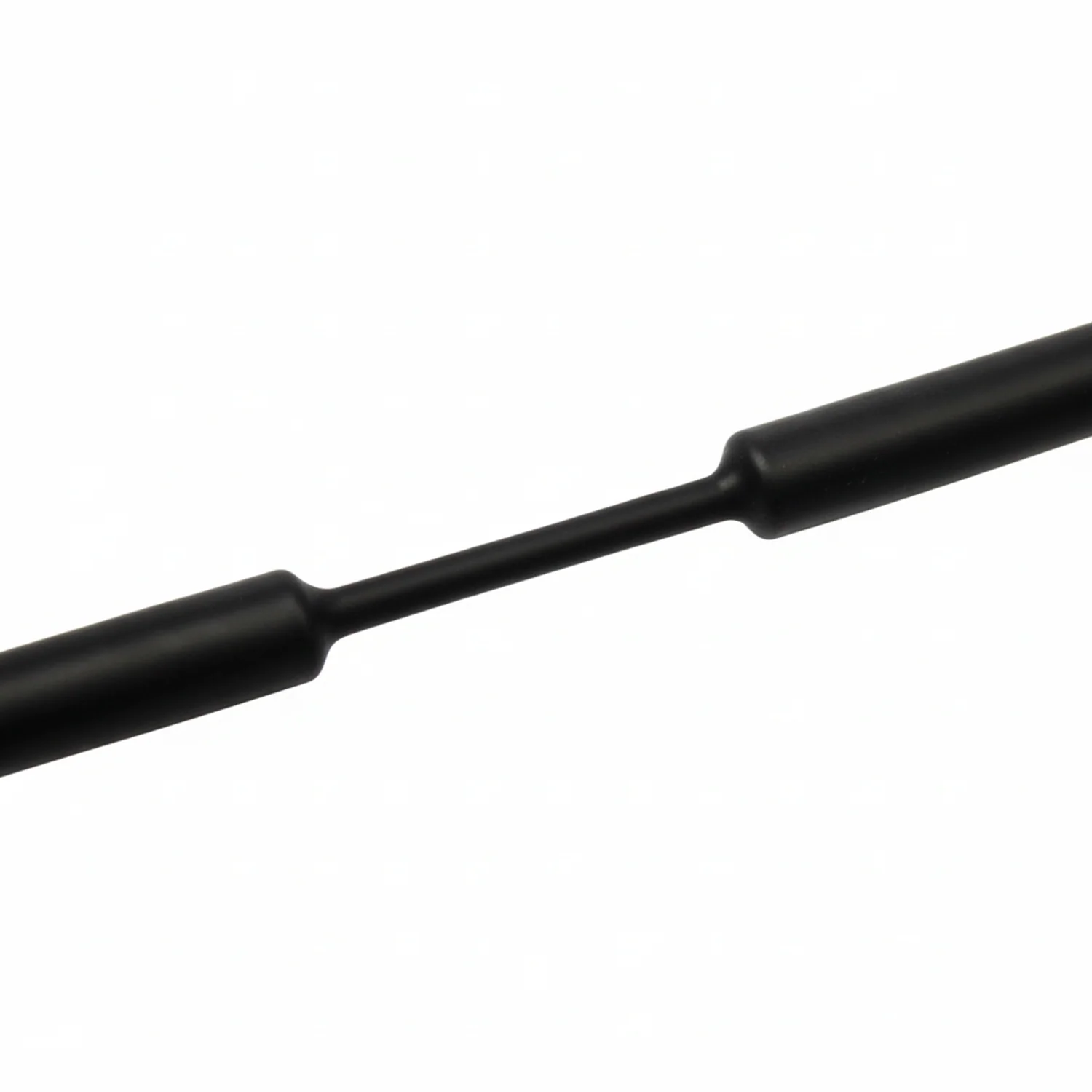

2:1 Thin Wall Polyolefin Heat Shrink Tubing Nominal Diameter: 3/32" Spool Size: 1320 Feet

2:1 Thin Wall Polyolefin Heat Shrink Tubing Nominal Diameter: 3/32" Flat Width: 1/8" ID After Shrinking: .047" Wall After Shrinking: .007" Spool Size: 660 Feet Note: Tubing is always referred to by Nominal ID, not flat width. Flat widths are approximate, and are provided for reference purposes only. Features: • Lower shrinking temperature than PVC, and higher use temperature • Thin Wall for confined/tight spaces • 2:1 Shrink Ratio (shrinks to ½ its original diameter) • UL 224 VW-1 300V and CSA OFT 150V recognized • Maximum Continuous use temperature 125°C • Standard Color: Black • Shrink Temperature of 100°C and operating temperature of -55°C to + 125°C • Crosses to : Sumitomo F4, Raychem Versafit V4 (Versathin), LG GSHS-1635T • Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation.
