$1,012.60

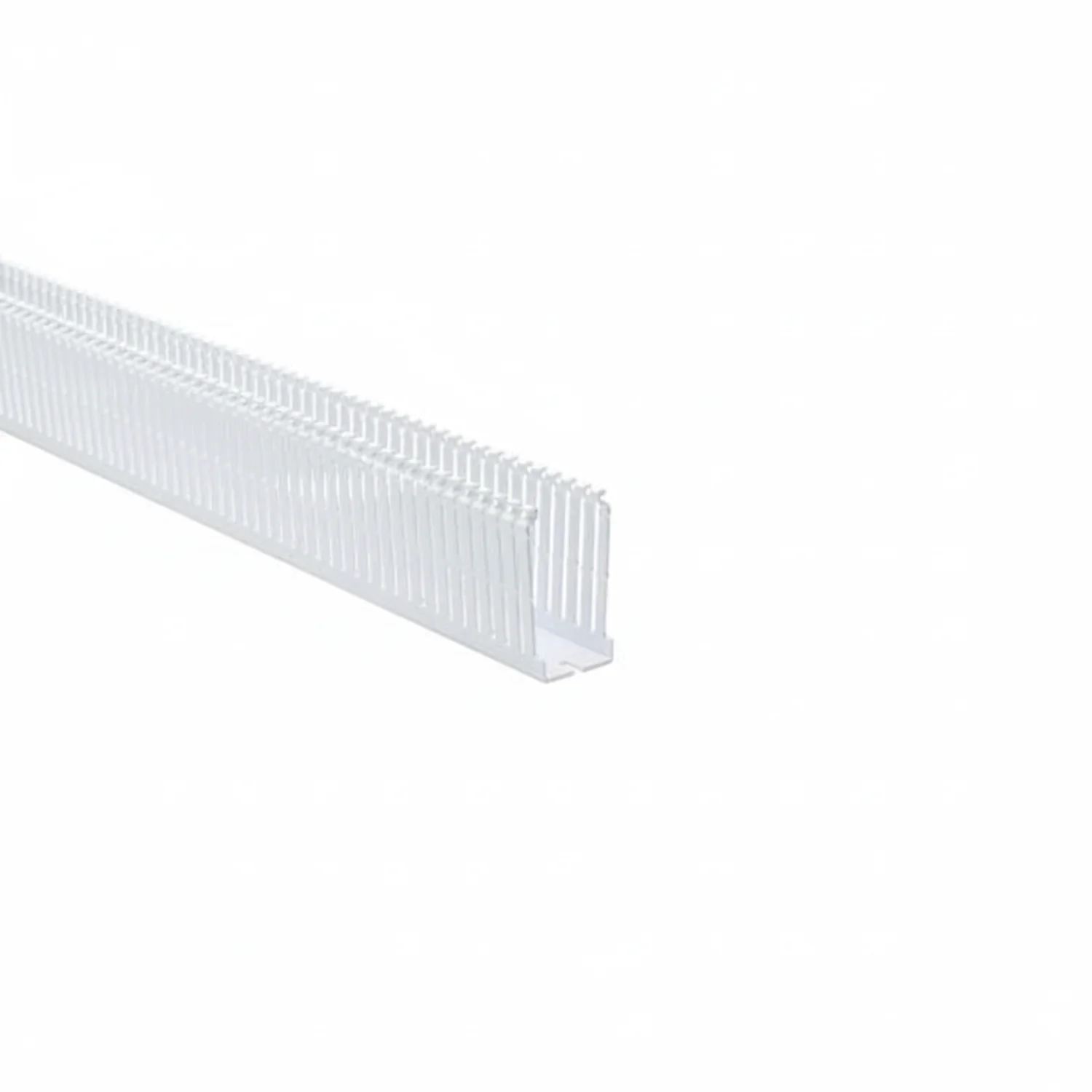

HellermannTyton 184-15301 High Density Slotted Wall Wiring Duct, 1.5" X 3", Adhesive, PVC, White, 120ft/Carton—
$1,012.60
The Story
HellermannTyton 184-15301 High Density Slotted Wall Wiring Duct, 1.5" X 3", Adhesive, PVC, White, 120ft/Carton
Length: 6"
Width: 1.5"
Height: 3.07"
Color: White
Qty/Carton: 120ft
Material: Polyvinylchloride (PVC)
Material Shortcut: PVC
Flammability: Self-Extinguishing
Halogen free: No
Operating Temperature (Metric): +122°F (+50°C)
Reach Complaint(Article 33): No
ROHS Complaint: Yes
Certification/Specification WEB: EN 50085-1:2005 + A1:2013 EN 50085-2-3_1A UL CSA
UL Recognized (US): Yes
Features & Benefits
• Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance.
• Each finger is provided with a double restriction to hold wires in the bottom portion of the duct, allowing for easier installation.
• Mounting holes are uniform in size to the solid and slotted wall duct, but are offered every 2 inches to accommodate compact designs and ease installation.
Description
HellermannTyton 184-15301 High Density Slotted Wall Wiring Duct, 1.5" X 3", Adhesive, PVC, White, 120ft/Carton
Length: 6"
Width: 1.5"
Height: 3.07"
Color: White
Qty/Carton: 120ft
Material: Polyvinylchloride (PVC)
Material Shortcut: PVC
Flammability: Self-Extinguishing
Halogen free: No
Operating Temperature (Metric): +122°F (+50°C)
Reach Complaint(Article 33): No
ROHS Complaint: Yes
Certification/Specification WEB: EN 50085-1:2005 + A1:2013 EN 50085-2-3_1A UL CSA
UL Recognized (US): Yes
Features & Benefits
• Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance.
• Each finger is provided with a double restriction to hold wires in the bottom portion of the duct, allowing for easier installation.
• Mounting holes are uniform in size to the solid and slotted wall duct, but are offered every 2 inches to accommodate compact designs and ease installation.
